BX-STRONG-AGM-ZKIT

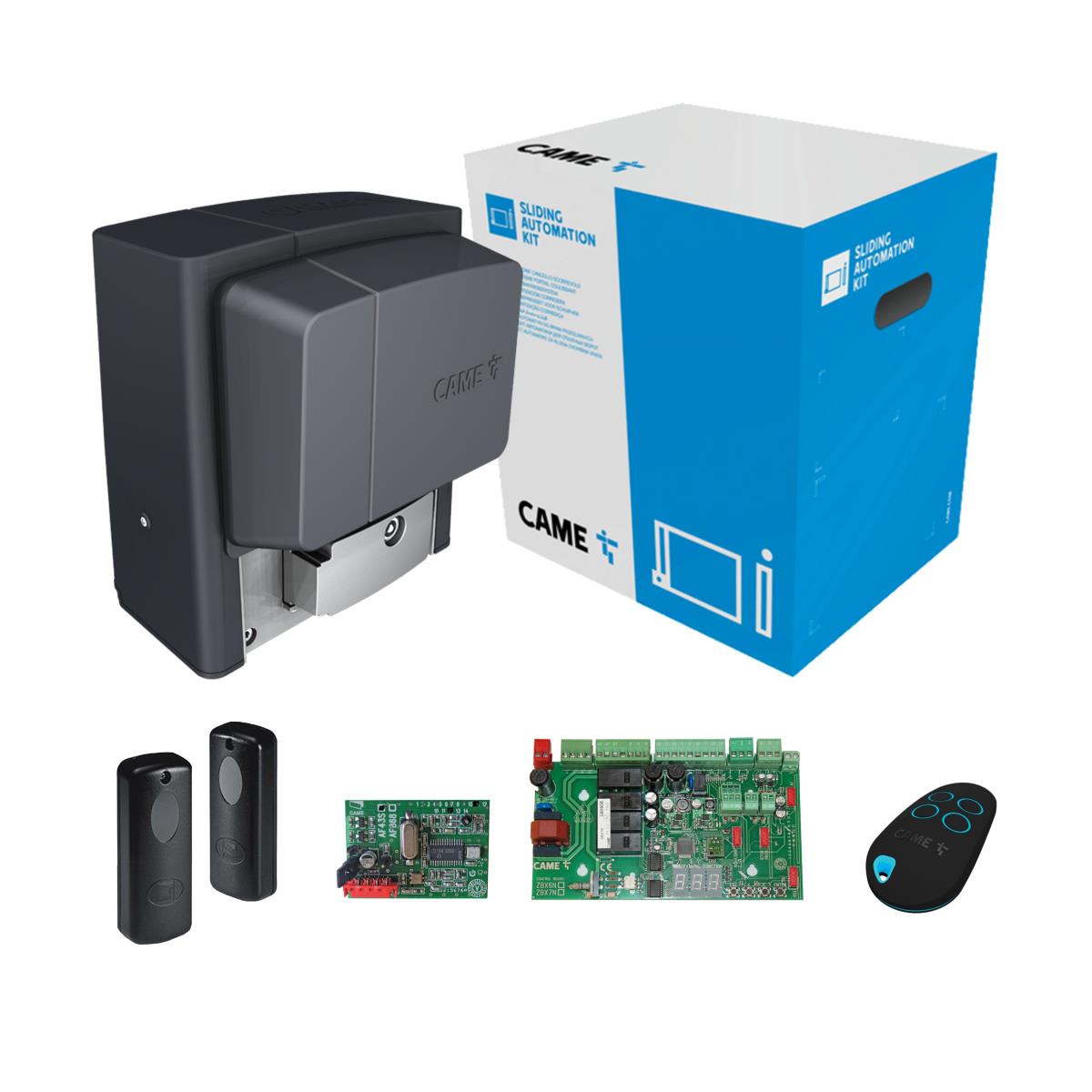

CAME actuator for leaf gates set, max 800kg,

Mark: Came, Max. wing length: 4m, Module of the gear comb: mod 4, Recommended weight of the wing: 400kg, End point: Magnetic end stop, Frequency (MHz): 433, Code type: Multi (fix/rolling), Drive slowdown: Drive decelerate before endpoint, Motor power supply: AC 230V, Performance: 520W, Force: 800N, Speed: 10,5 m/min, Power supply: AC 230V, Controller: ZBX7N, Master/Slave: Yes, Capacitor: 20uF, Protection level: IP44, Encoder: Yes

€315,92
without VAT
€388,58
with VAT
PCS
Stock availability
SK Krompachy > 10
SK Banská Bystrica 0
SK Bratislava R1 0
SK Senec 2

Contact

For more information, please contact our sales:

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Description Parameters Download Parts of set Catalog list Required products Related products Alternative products In sets

Parameters

Mark
Information about producer of product
Came
Max. wing length
Maximum wing length for the given drive
4m
Module of the gear comb
Určuje kompatibilitu hrebeňa s pastorkom motora.
mod 4
Recommended weight of the wing
Odporúčaná hmotnosť krídla brány pre správnu funkčnosť pohonu.
400kg
Frequency (MHz)
Určuje frekvenciu ovládača a riadiacej elektroniky.
433
End point
Information about the need for gate end stops with the selected drive.
Magnetic end stop
Code type
Typ kódu pre správnu kombináciu ovládača s elektronikou.
Multi (fix/rolling)
Drive slowdown
Information about the drive slowing down before the end position.
Drive decelerate before endpoint
Motor power supply
Type and value of the motor supply voltage
AC 230V
Performance
520W
Force
800N
Speed
Parameter of the drive feed speed
10,5 m/min
Power supply
Type and value of the power supply voltage
AC 230V
Controller
ZBX7N
Master/Slave
Yes
Protection level
IP44
Encoder
Yes
Capacitor
20uF

Download

PDF
Document for download

Parts of set

Electronics for sliding gates - extended functions

Electronics for sliding gates - extended functions ZBX-7N

1 pcs
Mark
Came
Radio card 433,9 MHz

Radio card 433,9 MHz AF-43-S

1 pcs
Mark
Came
Remote controller CAME TOP roling code, 4CH, CAME

Remote controller CAME TOP roling code, 4CH, CAME TOP44RBN

1 pcs
Mark
Came
Frequency (MHz)
433
Code type
Rolling
Photocell for plaster montage max. 10m Photocell for plaster montage max. 10m

Photocell for plaster montage max. 10m DIR-10

1 pcs
Mark
Came
Power supply
12-24V AC
Protection level
IP54
